How to Maintain Backup Gate Valves: A Step-by-Step Guide

Backup gate valves are critical components in industrial piping systems, acting as fail-safes during primary valve failures or emergency shutdowns. Proper maintenance ensures reliability, extends service life, and prevents costly downtime. Below is a structured approach to maintaining these valves effectively.

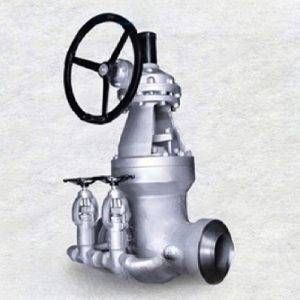

APl Wedge Gate Valve 1

1. Understanding the Critical Role of Backup Gate Valves

Backup gate valves are designed to isolate fluid flow when primary valves malfunction. Their role is twofold:

System Redundancy: Provide a secondary shutoff mechanism during leaks, pressure surges, or equipment failures.

Safety Compliance: Meet regulatory requirements for high-risk industries like oil and gas, chemical processing, and water treatment.

Why Maintenance Matters:

Neglected backup valves can seize, corrode, or fail to seal, rendering the entire redundancy system useless. Therefore, daily maintenance of backup gate valves is very important.

2. Regular Inspection for Backup Gate Valves

Routine inspections are the first line of defense, some appearance problems of the valve can be discovered and dealt with in time. Follow this checklist:

• Visual Checks: Look for external corrosion, leaks, or misalignment every 3–6 months.
• Seal Integrity: Test valve packing and gaskets using a soap solution or ultrasonic leak detector.
• Component Wear: Measure gate and seat thickness with calipers; replace if wear exceeds 10% of the original specification.

Pro Tip: The use of an endoscope allows inspection of the internal cavity without disassembling the valve, greatly saving our maintenance time and costs.

3. Lubrication of Backup Gate Valves

Lubrication prevents friction-related wear and ensures smooth operation:

• Valve Stem: Apply high-temperature grease (e.g., lithium-based) quarterly.
• Gearbox: Use ISO VG 68 oil for gear-driven valves.
• Threads and Bolts: Coat with anti-seize compound during reassembly.

Avoid Over-Lubrication: Excess grease attracts debris, accelerating wear. Wipe off residue after application.

4. Functional Testing of Backup Gate Valves

Simulate real-world conditions to verify performance:

• Partial Stroke Testing (PST): Cycle the valve to 20–30% open/close monthly to prevent seizing.
• Full Closure Test: Annually close the valve under maximum system pressure and check for leaks using a pressure decay test.
• Emergency Response Drill: Test valve operation during planned system shutdowns to mimic crisis scenarios.

Case Study: In the oil and gas industry, regular functional testing of backup gate valves ensures that in the event of a main valve failure, the backup valve can be quickly and effectively switched to prevent leakage and environmental pollution.

5. Cleaning and Corrosion Prevention for Backup Gate Valves

Corrosion is the leading cause of valve degradation. Address it with:

• Mechanical Cleaning: Remove scale and debris using wire brushes or pneumatic tools.
• Chemical Passivation: Apply phosphoric acid solutions to stainless steel valves to restore oxide layers.
• Protective Coatings: Use epoxy paints or thermal-sprayed aluminum (TSA) for valves in marine environments.

Innovative Approach: Installing a cathodic protection system for submerged valves in offshore applications can effectively slow down the corrosion of valves by seawater, thereby ensuring the long-term reliability and safety of submerged valves.

6. Maintenance Documentation Management

Accurate records enable proactive maintenance:

Digital Logs: Use CMMS (Computerized Maintenance Management Systems) to track inspection dates, lubrication schedules, and repair histories.

Failure Analysis: Document root causes of past issues (e.g., “stem corrosion due to chloride exposure”).

Compliance Reports: Generate audit-ready records for OSHA or API standards.

7. Backup Valve Spare Parts Inventory Management

Stock critical spares to minimize downtime:

• High-Priority Parts: Seals, gaskets, stem nuts (keep 2–3 sets in stock).
• Long-Lead Items: Custom-sized gates or bonnets (order 6 months in advance).
• Storage Conditions: Store elastomers in climate-controlled areas to prevent hardening.
• Cost-Saving Strategy: Partner with suppliers for consignment inventory to reduce upfront costs.

8. Operation Training for Personnel

Even well-maintained valves fail if operated incorrectly. Therefore, we need to regularly train team members and master relevant knowledge. Train teams on:

Proper Torque: Use calibrated torque wrenches to avoid over-tightening flange bolts.

Emergency Protocols: Teach “close-first, inspect-later” responses during leaks.

Tool Familiarity: Ensure proficiency with gear operators and hydraulic actuators.

Training Innovation: Use VR simulations to practice valve operation in hazardous environments.

9. FAQs

Q1: How often should backup valves be inspected?

A: Every 3 months for harsh environments; 6 months for controlled settings.

Q2: Can I use generic grease for lubrication?

A: No – refer to the valve manufacturer’s data sheet for temperature and chemical compatibility

Q3: What if a valve fails during testing?

A: Tag it “out of service,” investigate the cause, and activate tertiary backups if available.

10. Summary

Therefore, to ensure the stability and safety of the valve, maintenance of spare gate valves requires a systematic approach, which can be generally divided into the following four points:

• Prioritize inspection and lubrication to prevent failures.
• Verify the function and performance of the valve through actual testing.
• Prevent valve corrosion through cleaning and advanced coatings.
• Support the team through training and clear documentation.

Final insight: Integrate predictive maintenance technologies such as acoustic emission sensors to detect early wear and turn reactive maintenance into proactive solutions.
